Real time vehicle tracking gt06
*Built-in high sensetive MTK GPS chip
* Built-in GSM and GPS antennas
* Real-time tracking
Real time vehicle tracking gt06

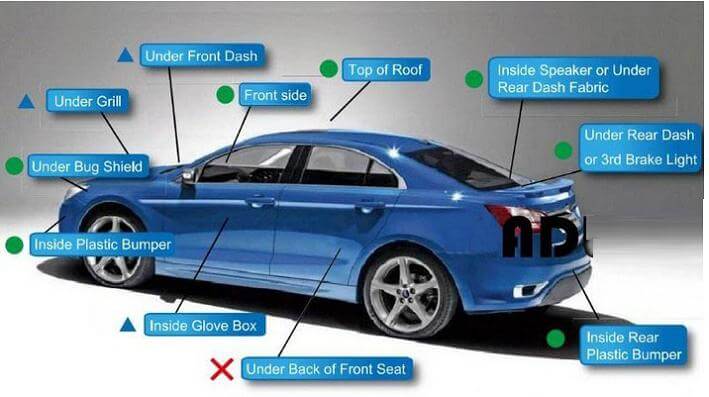

specialise in GPS tracking solutions and Fleet Management for mobile and static assets, targeting the Motorcycle, Automotive, Earth Moving & Trucking Industries, in fact just about anything mobile. Installation in most instances is between 1 to 1.5hrs for the GT-06 model and whilst any auto electrician can do it, we do have a list of preferred installers in all states and territories. QuikTrak is the World's most advanced GPS tracking device available. It also the most accurate in terms of positioning from 1 to 2m (others can be 30 to 40m or more) but even better, the most COST EFFECTIVE of all.
* GPS+GSM+GPRS
*Built-in high sensetive MTK GPS chip
* Built-in GSM and GPS antennas
* Real-time tracking, uploading location
* Tele-cutoff petro/electricity
*Vibration alarm
* ACC detection
* Built-in ON/OFF power, wide voltage input
* Alarm when the power supply is disconnected intentionally(with backup battery)
* Get location via SMS and GPRS(TCP)
* Voice-monitor function
* Panic button for sos alarm
*Auto failure -restore function
* Three LEDs indicators
* Platform location service
GT06 Specification
GSM MTK6223D
GSM 850/ 900/ 1800/ 1900 MHz
GSM antenna Quad band
GPRS Class12
GPS MT3326
GPS Channels 20
Tracking sensitivity -159dBm
Aquisition sensitivity -144dBm
Locating time cost Hot start <2 sec(open sky)
Warm start <15 sec
Cold start <38 sec(open sky)
GPS antenna Built-in high gain porcelain antenna
Battery 450mAh/3.7vDC
Voice monitoring range 5M
Voltage input range 9-36 VDC
LED indicator three LED indicators GPS-blue GSM-green Power-red
Dimesions 98.0(L)× 52.0(W)× 15.0(H)
Weight 80g
Application environment Operating temperature -25°C to +60°C
Operating humidity 5% to 95% non-condensing
*Built-in GSM and GPS antennas
* Real-time tracking and burglar alarm
*SOS alarm and voice monitoring function
*Ignition detection and tele-cutoff(petro/electricity) funtion
ome helpful hints when using the online tracking
1. If you click on an asset and click the tracking tab in the bubble it will open up an individual tracking screen and mark the vehicles movement with a line on the screen.
2. If you click playback a new screen will pop up. Enter a time and date and you are able to retrace an assets movement for up to 60 days in the past.
3. If you click enlarge, it simply zooms in on the particular asset.
4. If you click operation statistics you are able to retrieve data including over speed and mileage reports. Click the daily report tab to get a report of all the addresses the vehicle stopped at (set by you) and the amount of time. This is great to calculate time spent on jobs etc. If you know roughly how much it costs you to run each car per KM you can set that number in and it will calculate how much that vehicle cost you to run each day. Great for comparing one vehicle or driver to another.
If someone in the staff has a lead-foot costing you money, here is all the proof you need.
Spreadsheets will even allow you to print colour graphs with all he information you need to monitor and change driver habits or at least have the driver refrain from poor driving habits and comply with your instructions
