Factory Hot selling,cheapest mini gps tracker TK101 with vehicle real time online tracking gps software

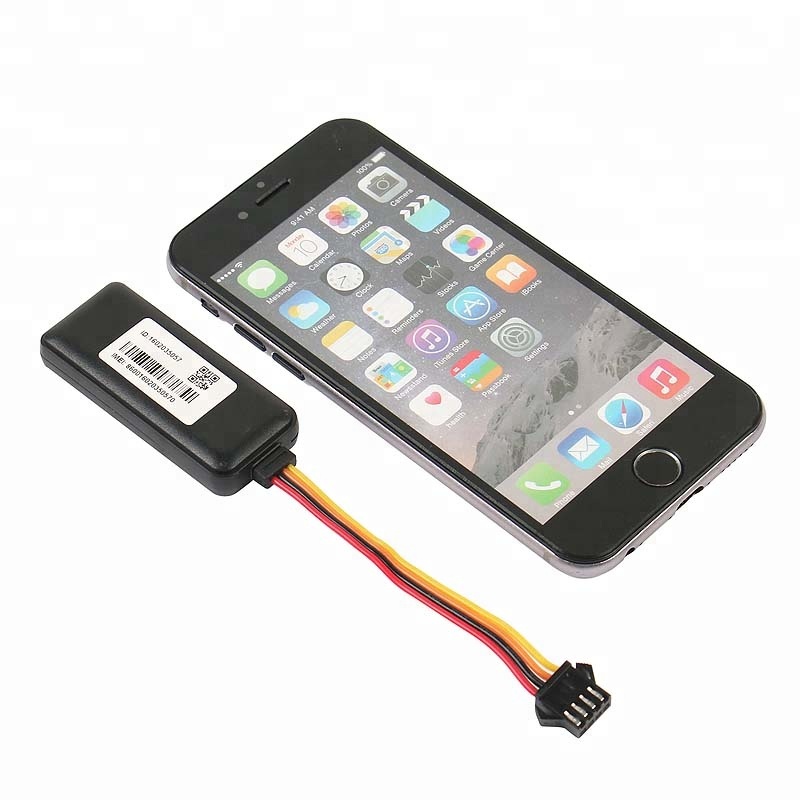

Larger Image : Factory Hot selling,cheapest mini gps tracker TK101 with vehicle real time online tracking gps software

Product Details:

Place of Origin:Guangdong, China (Mainland)
Brand Name:Diwei
CE,FCC:CE,FCC

Payment & Shipping Terms:

Minimum Order Quantity:100 Piece/Pieces
Packaging Details:Package box demensions:130*90*60(mm) Net weight:142g Gross weight:250g
Delivery Time:1-2weeks
Payment Terms:T/T
Supply Ability:30,000 Piece/Pieces per Month
Detailed Product Description

Factory Hot selling,cheapest mini gps tracker TK101 with vehicle real time online tracking gps software



TK101--GSM car tracker have a very wide range of industrial and civil applications, is a powerful GPS tracking device, 9-80 v voltage range, suitable for cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of monitor. Typical application industry are: logistics enterprises, the management team, the bus management, insurance companies, power companies, oil companies, telecommunications companies, taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers,individual owners.



Product Features:

1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:9-80V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
7.Use external MIC to monitor remotely

8.OTA remote Update software

9.Ip65 waterproof



Alarm Types :
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm



Function Extension:
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application



Environment for use :

1.Limited working temperature:-20°C~80°C

2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.



Working Voltage:

12VDC/24VDC

Standby Current

<3mA

Work current :

<120mA

GPS positioning accuracy

5-15M

GSM positioning accuracy

100M

GPS Frequency

1575MHz

GSM Frequency :

850/900/1800/1900MHz

Hot/warm/cold start time :

<3S,<1S,<60S

Dimensions (mm)  :

L*W*H: 68 X 26.8 X 12

Weight :

28g
