TK121 GPS Tracker has a very wide range of industrial and commercial applications, small and powerful,wide voltage 6-36V , cutting oil , can be trackered on the platfrom through computer & smart phone.
Typical application areas : logistics enterprises, fleet management, bus management, insurance , power , oil , telecommunications , taxi , car sales , car rental , vehicle maintenance , technology researchers.
PRODUCT FEATURES:
1.Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:6-36V DC.
3.Double Module,GPS precise positioning with A-GPS, LBS positioning for assist.
4.Uploaded by GPRS regularly, Real-time tracking and history route playback.
5.supports ACC status checking and vehicle status notifying.
6.Built-in battery, Power disconnect alarm & Low battery alarm.
7.Built-in Motion sensor ,Vibration, collision and falling alarm.
8.GEO-fence alarm, speed & shift alarm.
9.Remotely cut oil / electric by Relay.
10.Extend GPIO port to add extension function(Need Customization).
11.Multiple protocol support, can be integrated to platform of customers
12.OTA upgrade firmware.
PLATFORM/APP:
1.Real-time Tracking
2.Route Play Back
3.Cut Oil (Need Relay)
4.Vibration Alarm
5.Collision / Falling Alarm
6.Speed Alarm
7.Geo-fence Alarm
8.Power Disconnect Alarm
9.Low Battery Alarm
Main parameter
|
Voltage
|
12/ 24/ 36 VDC
|
|
Work Current
|
<30mA@12V
|
|
Standby Current
|
<10mA@12V
|
|
GPS Accuracy
|
5-15m
|
|
LBS Accuracy
|
About 200 m
(Depending on density of base stations)
|
|
GPS Frequency
|
1575MHz
|
|
GSM Frequency
|
850/900/1800/1900MHz
|
|
Hot/warm/cold Start
|
<3s,<15s,<60s
|
|
Battery Capacity
|
70mAh
|
|
Dimensions (mm)
|
85.8(L)X30.6(W)X10.8(H)
|
|
Work Temperature
|
-20~70
|
|
Work Humidity
|
20%~80%RH
|
|
Weight
|
33 g
|

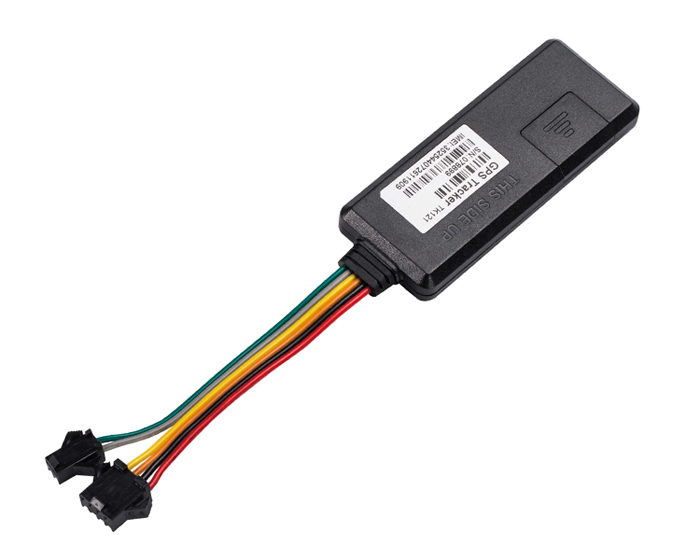

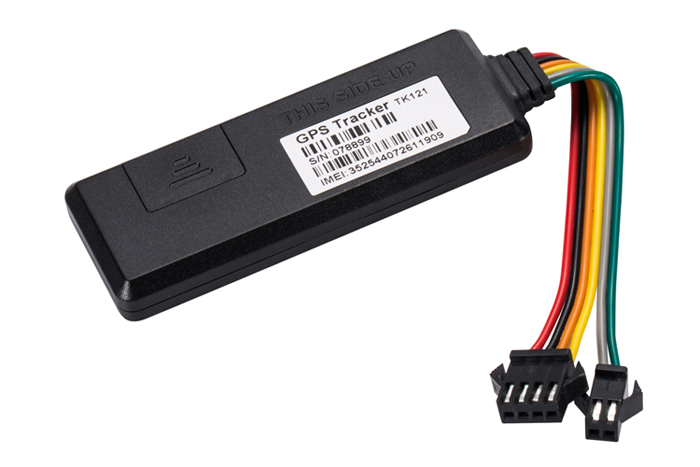

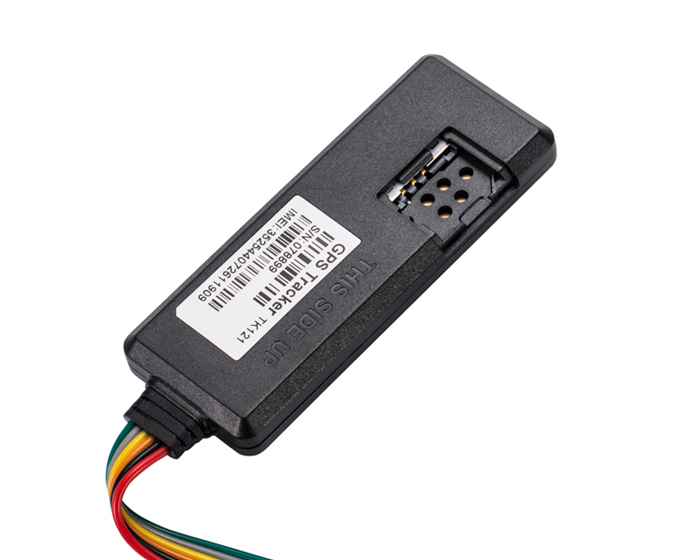

Detail picture
