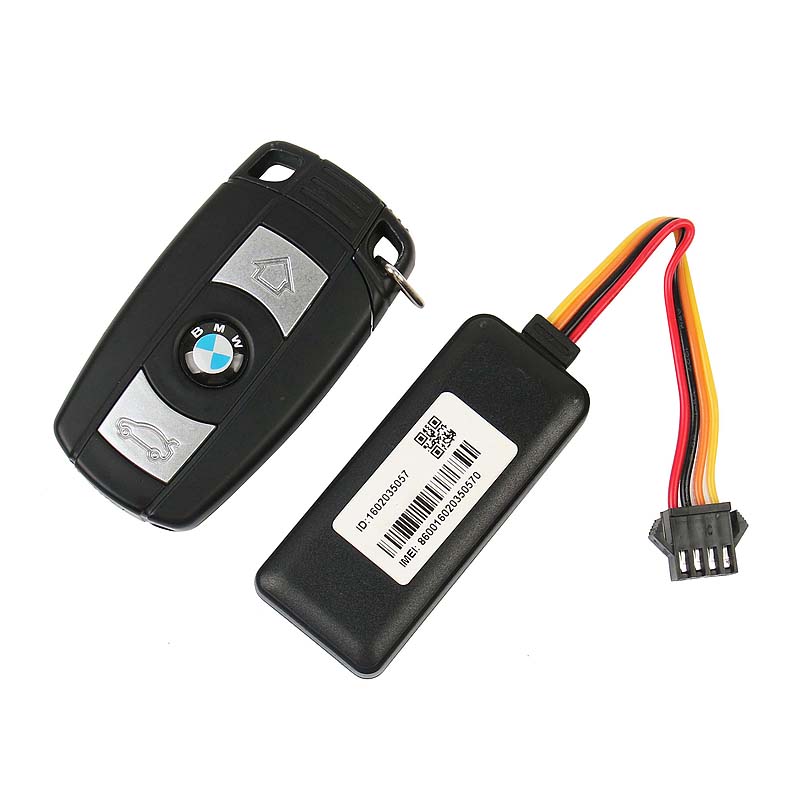

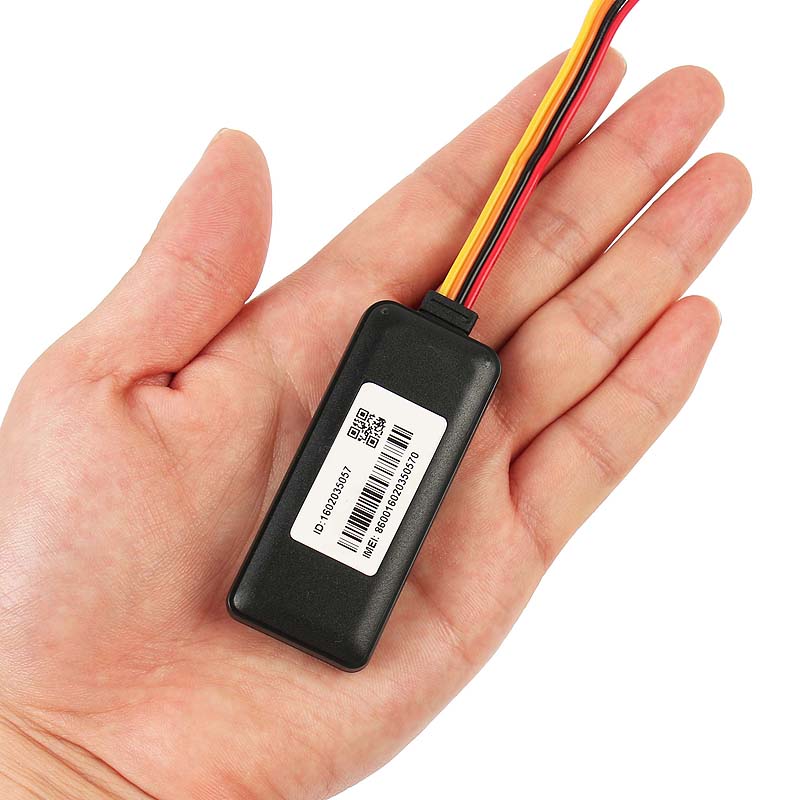

China Original Manufacturer Cheap GPS Car Tracker TK101 with mini size and low price
TK101--GSM car tracker have a very wide range of industrial and civil applications, is a powerful GPS tracking device, 9-80 v voltage range, suitable for cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of monitor. Typical application industry are: logistics enterprises, the management team, the bus management, insurance companies, power companies, oil companies, telecommunications companies, taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers,individual owners.
Product Features:
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:9-80V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
7.Use external MIC to monitor remotely
8.OTA remote Update software
9.Ip65 waterproof
Alarm Types :
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
Function Extension:
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Environment for use :
1.Limited working temperature:-20°C~80°C
2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.
Working Voltage:
|
12VDC/24VDC
|
Standby Current
|
<3mA
|
Work current :
|
<120mA
|
GPS positioning accuracy
|
5-15M
|
GSM positioning accuracy
|
100M
|
GPS Frequency
|
1575MHz
|
GSM Frequency :
|
850/900/1800/1900MHz
|
Hot/warm/cold start time :
|
<3S,<1S,<60S
|
Dimensions (mm) :
|
L*W*H: 68 X 26.8 X 12
|
Weight :
|
28g
|
