Product Features
GPS/Glonass/Beidou/Galileo/Qzss (Globally suport viarious satellite positoning system)
1. Supports GSM/LTE CAT M1/NB1;quad bands, i.e. B1/B2/B3/B4/B5/B12/B13/B18/B19/B20/B26/B28/B39, universal in the world.
2. GPS precise positioning, support A-GPS uploaded by LTE/GPRS regularly, real-time tracking and history track playback;

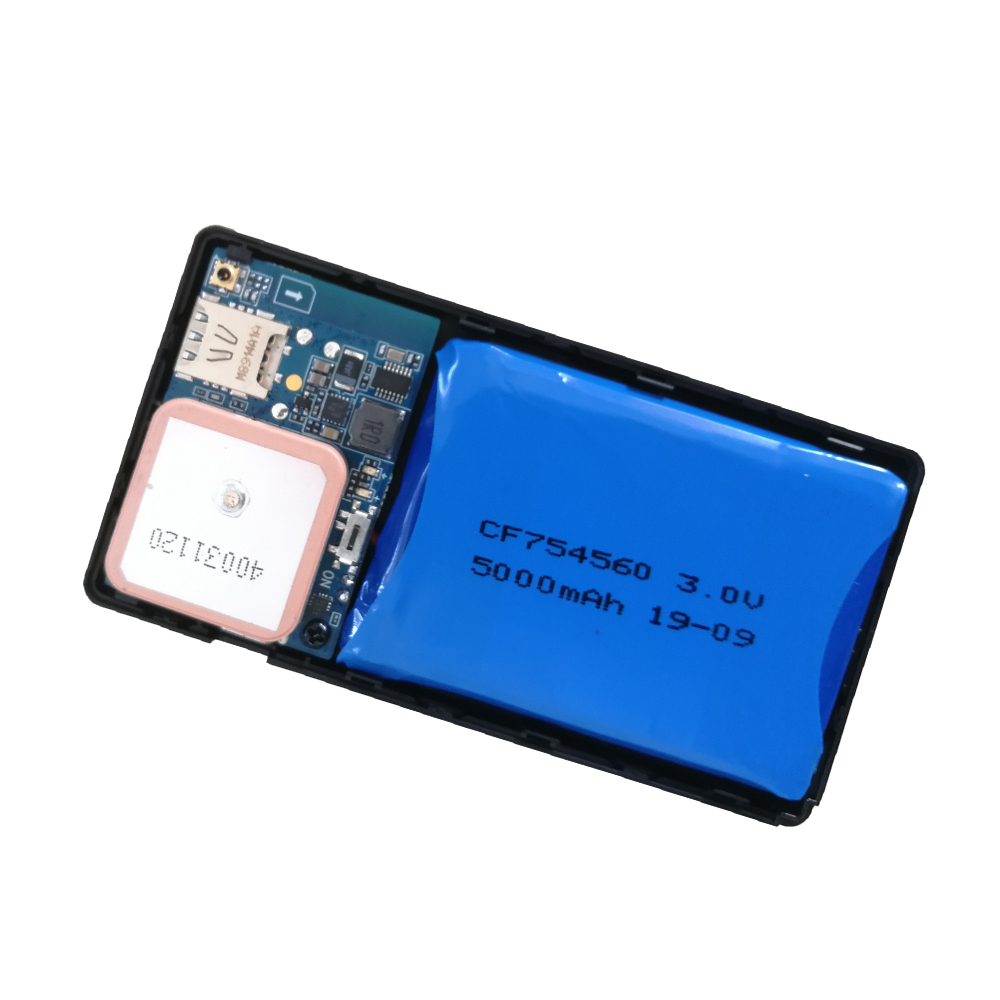

3. 5000mAh Battery, standby for 3 years.
4. Long Standby mode, wake up for 3 mins a day, then sleep.
5. Turn to Emergency mode for real time tracking after wake up.
6. GEO-Fence Alarm, Low battery Alarm.
7. Track and config device by PC & APP online & SMS query
8. Switch to emergency mode to restore the real-time tracking mode
9. Can be integrated to platform of customers
10. OTA upgrade firmware.
Product Base Specification
|
Voltage
|
3.7 VDC
|
|
Work Current
|
<30 mA
|
|
Standby Current
|
<15 uA
|
|
GPS Accuracy
|
5-15m (Depend GPS signal)
|
|
LBS Accuracy
|
About 200m (Depending on density of base stations)
|
|
GPS Frequency
|
1575MHz
|
|
GSM Frequency
|
850/900/1800/1900MHz |
|
CAT M1/NB1 Frequency bands
|
B1/B2/B3/B4/B5/B12/B13/B18/B19/B20/B26/B28/B39 |
|
GPS/Glonass/Beidou/Galileo/Qzss
|
Globally suport viarious satellite positoning system |
|
Hot/warm/cold Start
|
<3s,<15s,<60s
|
|
Battery Capacity
|
5000 mAh |
|
Dimensions (mm)
|
96(L) × 50(W) × 11.2(H)
|
|
Work Temperature
|
-20?~65?
|
|
Work Humidity
|
20%~80% RH
|
|
Weight
|
70 g
|
Installation:
Be adsorbed on iron
