GTP29 Cat M1 devices can leverage GPS, Wi-Fi, BLE, shock sensors, motion sensors, light sensors, temperature sensors as well as humidity sensors to provide the best tracking results.

GPT29 Smart Sensor Tag for Logging Data on Environmental Conditions and Location

The GPT29 is a battery-operated or externally powered tracking device logs and broadcasts shipment and asset information including proximity location(GEO) and sensor values(shock, motion, light, temperature, humidity). The GPT29 Tags transmit via proprietary Bluetooth LE, WI-FI protocol through DIWEI enabled telematics devices. It is an ideal solution for tracking shipments over the road, in flight and at sea when global coverage is needed to maintain supply chain integrity, security and regulatory compliance integrity, security and regulatory compliance.





1. Feature:

GPS, WI-FI, BLE Cellular/Network

Built-in Motion Sensor

Built-In light sensors

One Button Activation

Waterproof (IP67)

Shock & Vibration

Resistant Traceable Temperature

Resistant traceable humidity

Battery & External Power Options



2. Market Applications

Asset Tracking

Trailer Tracking

Cargo Monitoring

Asset Tracking

Pallet- and

Package-Monitoring

3. Networks

4G LTE Cat M1

3G Cellular Worldwide

2G Cellular Worldwide

Wi-Fi Enabled

Bluetooth LE



4. Sensor Capabilities

Humidity

Light

Shock/drops/vibrations

Temperature





5. Technical Specifications

Cellular/Network

GSM/GPRS	4G LTE Cat M1 3G cellular worldwide 850/900/1800/1900/2100 MHz Fallback to 2G (if no 3G) Bi-directional communications Over-the-air adjustable reporting rate Reporting rate: 1 min to 24 hour
Wi-Fi Enabled	2.4Ghz B/G/N
Bluetooth	BT Radio to SC iOn Trak Gateway 250 ft (80 meters) line of sight





Location Accuracy

Wi-Fi	100 meters
Cellular	500 meters
GPS	3-5 meters





Certifications

Industry Certifications

FCC, CE, Industry Canada, NIST, NOM, PTCRB, FAA Compliant



Power

Battery Type: Rechargeable li-Ion battery 3.6V 4200mAh

External: Optional



Environmental

Temperature	-20 C to 55° C (operating) -30 C to 60° C (storage)
Shock and Vibration	Resistant
ESD	IP67



Physical/Design

Dimensions	95(L)X 58(W) X 24.5(H)mm
Weight	110g
Sensors
Motion	Stationary/Moving after Stationary
Temperature	Accuracy +/- 0.5C type (-30C to 60C) Min/Max Threshold (configurable)
Light	Threshold on/off
Shock	Dedicated 3-axis accelerometer Impact - general shock event Drop - vertical drop above threshold Tilt - tilt angle (configurable)



Tilt	Tilt Angle (configurable)
Humidity	Accuracy 4% rH (20% to 80% rH)
Line of Sight	250 ft (80 meters)

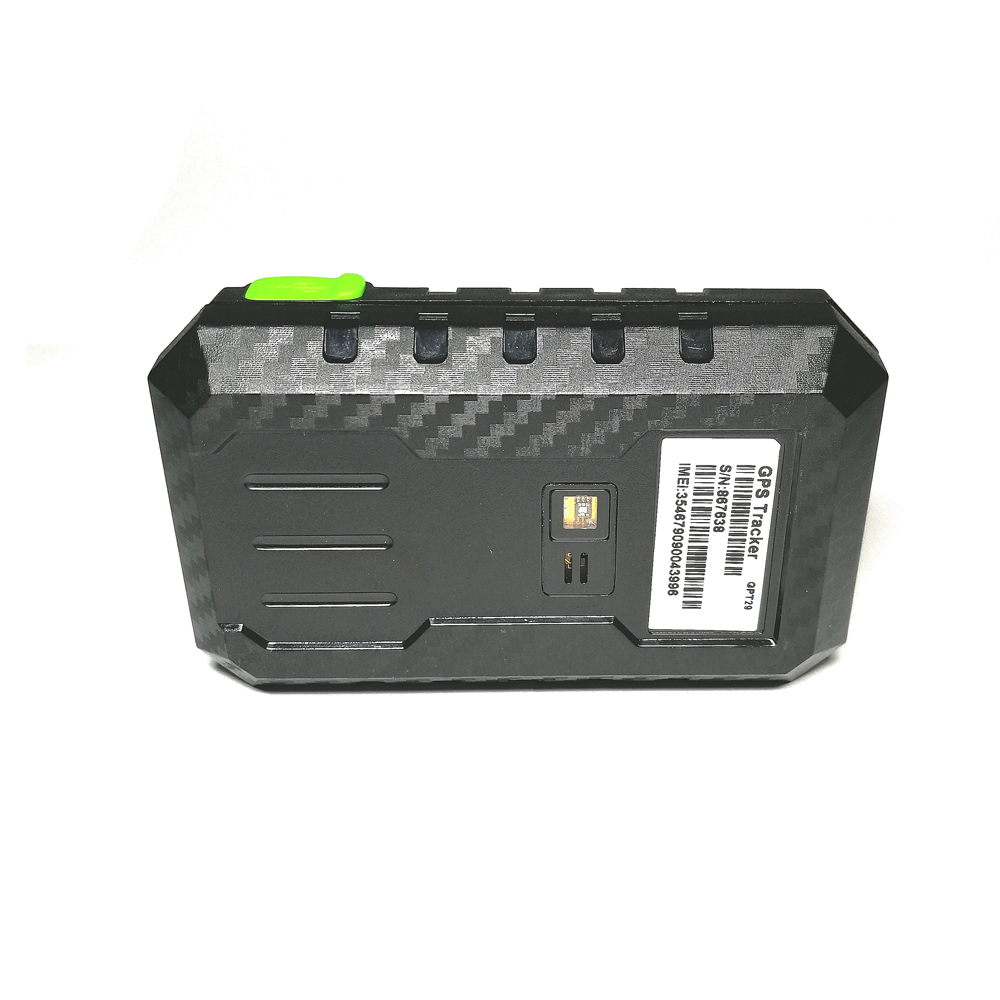

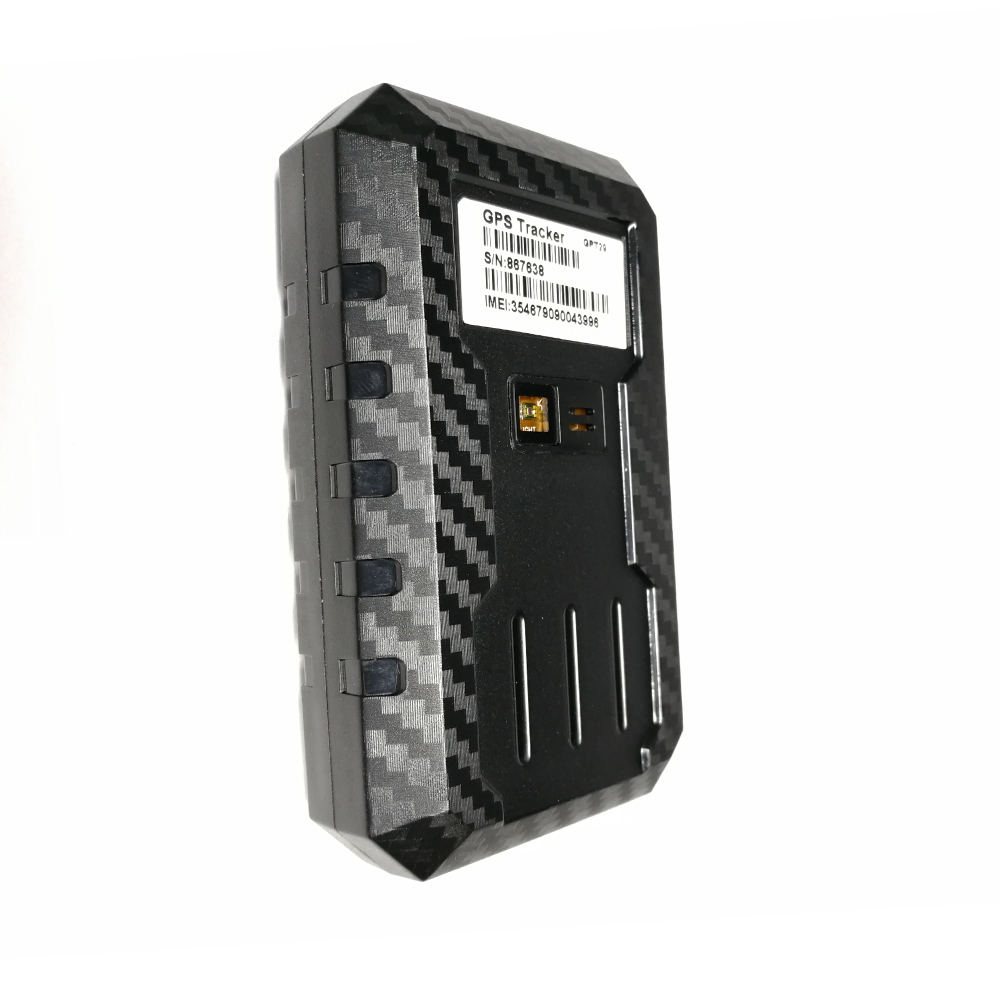

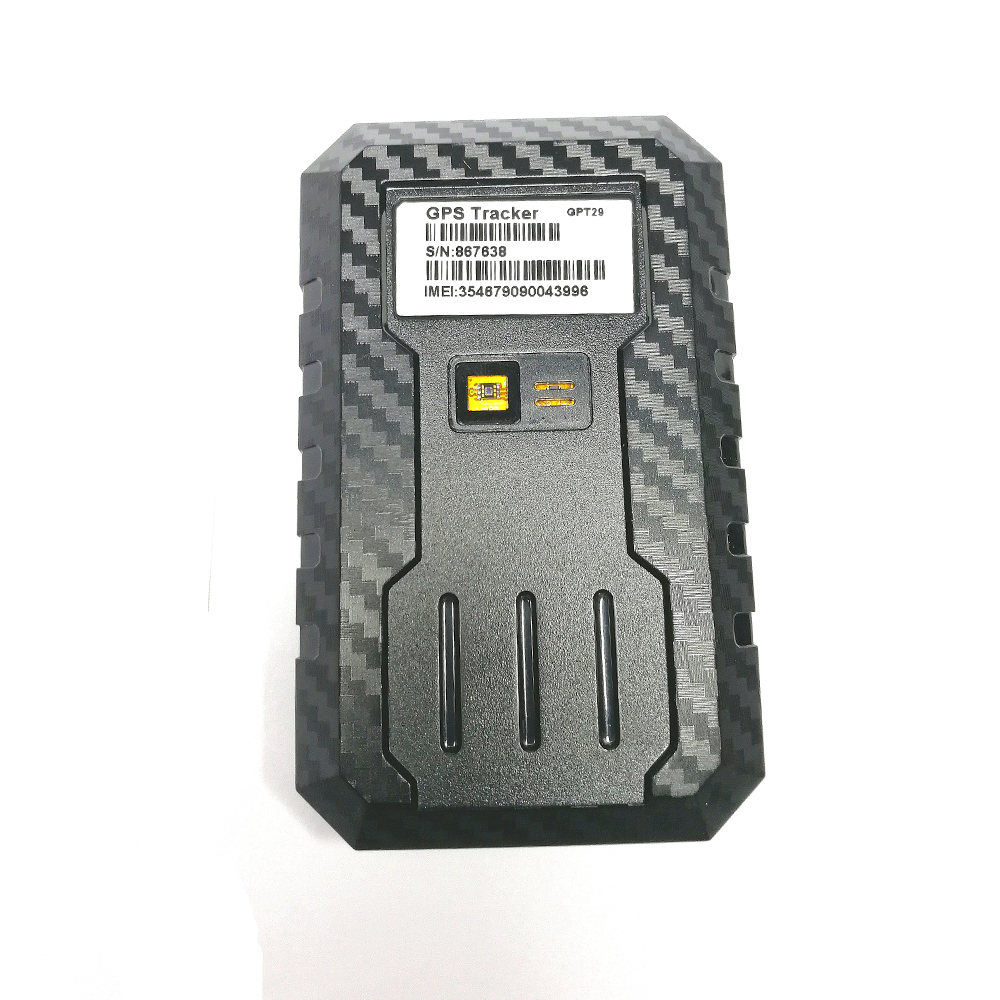

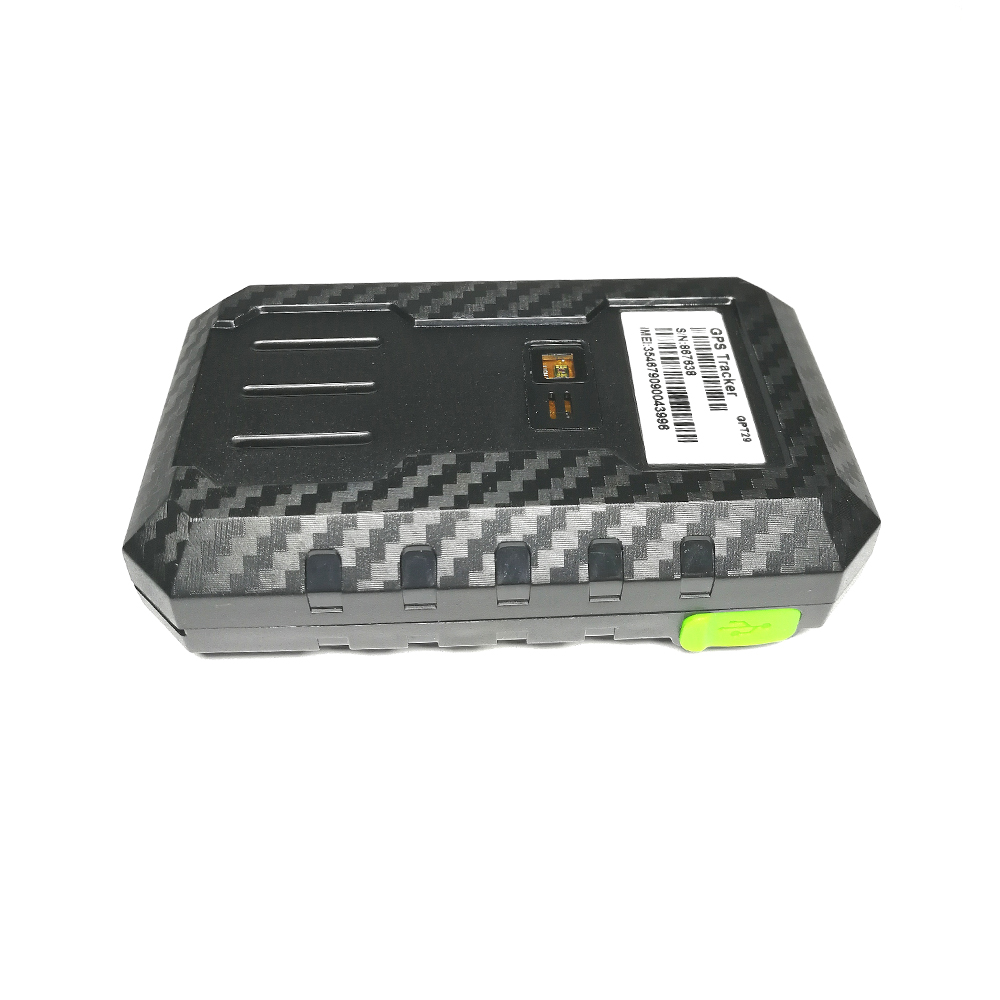

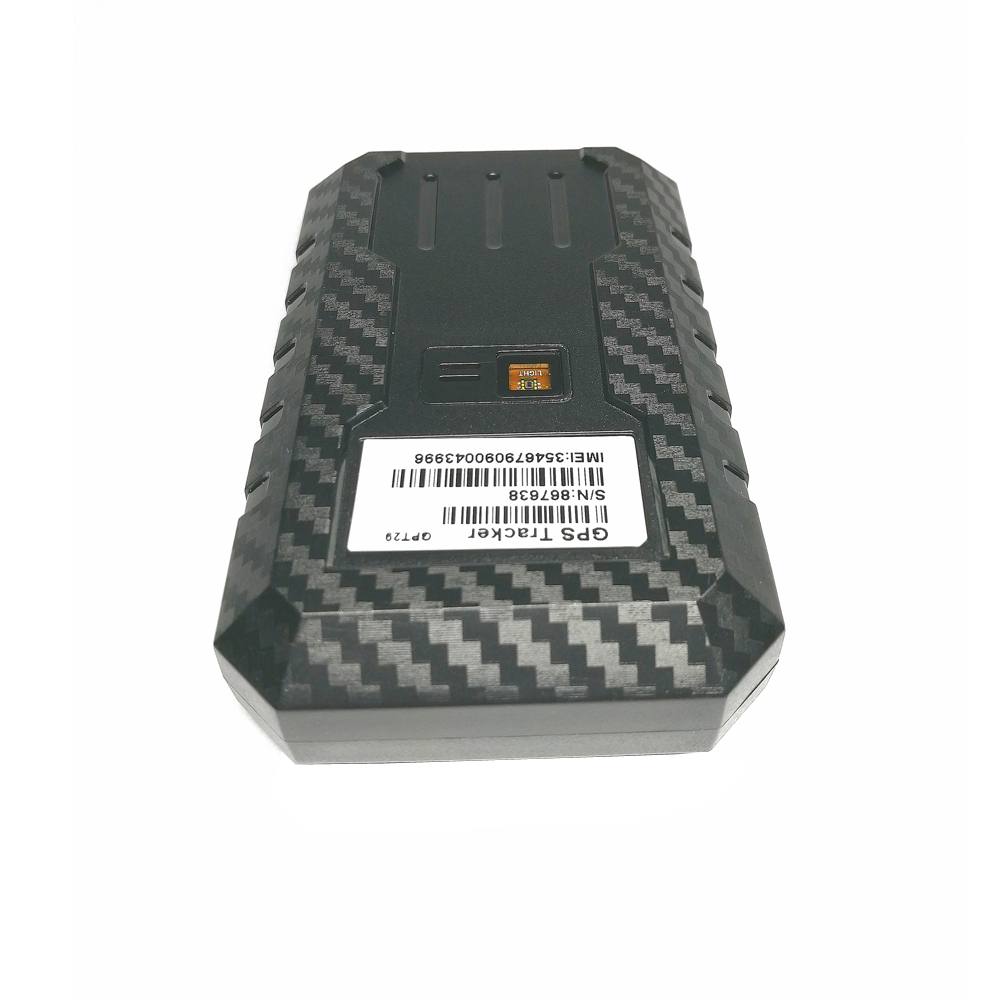

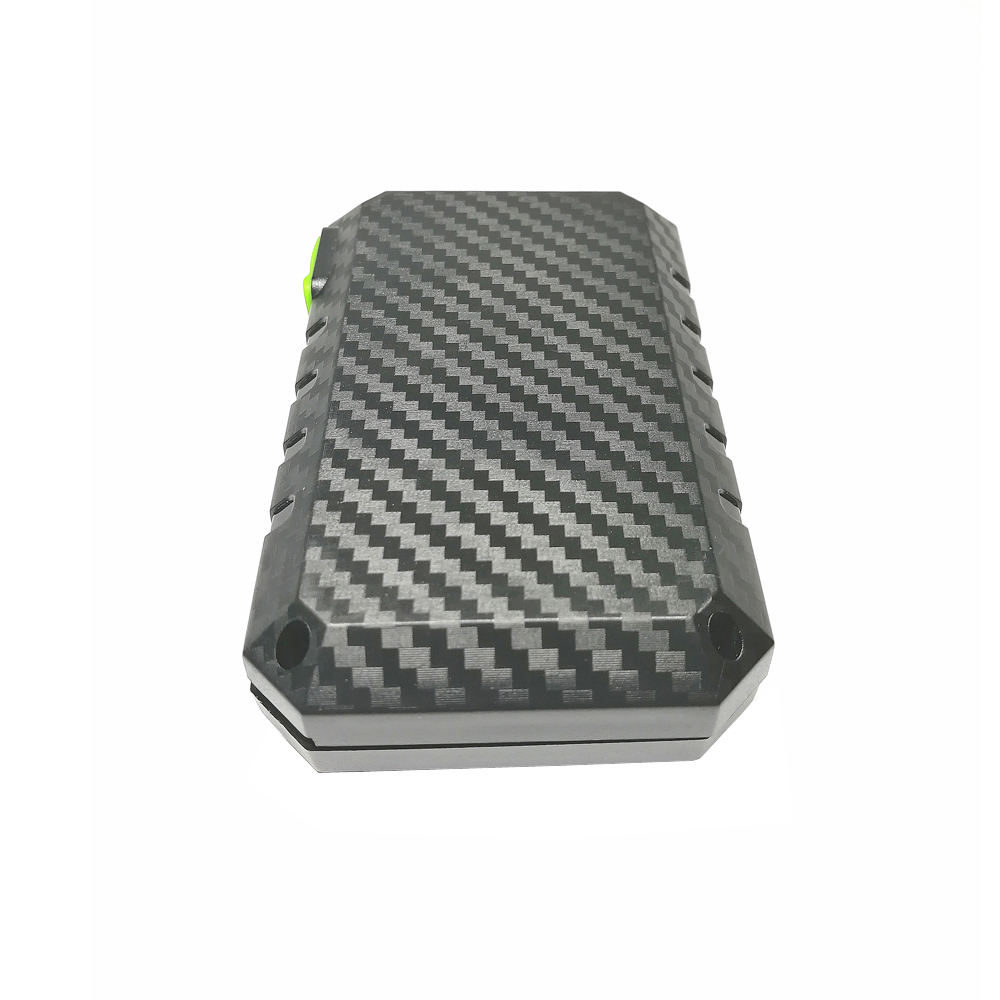

The picture for GPT29:
