TK319-L 4G LTE Cat M1 vehicle tracker supports full hand-over between network cells from a moving vehicle and is therefore well suited for mobile use cases with low to medium data rate needs, such as vehicle tracking, asset tracking, sos, fleet management and usage- based insurance. It provides accurate real time location and driving behavior event, supports multiple sensors ; supports multiple external equipment for various applications, TK319-L is an extensible Vehicle tracking device for fleet management and M2M applications.

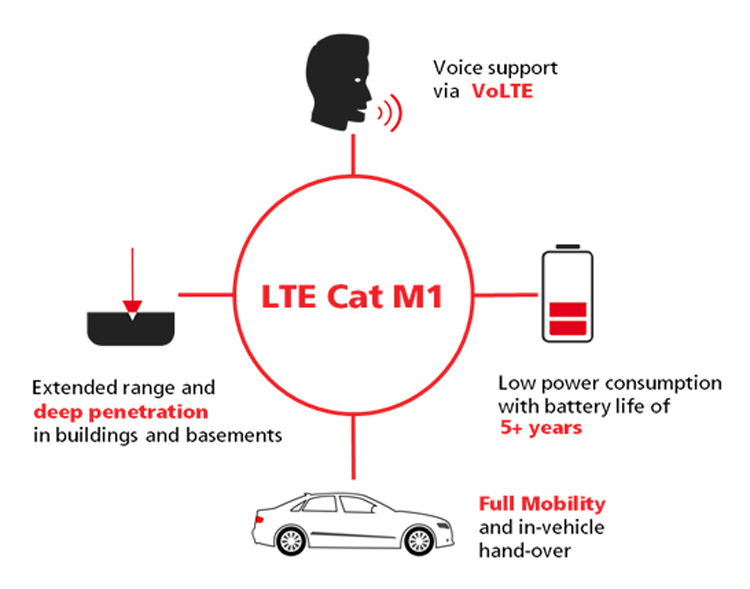

It enables longer battery lifecycles and greater in building range, Key features include:

• Support of voice functionality via VoLTE
• Full mobility and in vehicle hand over
• Low power consumption
• Extended in building range





Product Features:

• 2G/3G/4G covers globally universal frequency bands
• The Module has received PICRB, GCF, FCC, IC, Anatel, AT&T, CCC certifications
• GPS/LBS dual positioning, and support A-GPS
• Intelligent real-time tracking, and report the location
• ACC Detection, Remote Fuel Shutoff, Over speed Fuel Shutdown (New)
• GPIO extension, can be extended to Serial Port
• the firmware can be upgraded remotely (OTA)
• Possessing a certain waterproof IP65 and dustproof performance
• With PC web page, mobile APP query, SMS inquiry and remote settings



Product Function:

• Power-off alarm
• LBS positioning
• A-GPS
• ACC detection
• SOS Aalrm
• Overspeed fuel shutoff
• OTA update

Geofences Set ‘safe zones’ for your car, so every time it leaves one of these zones you receive a text.	Overspeed Alert   Receive a text every time your car goes over a certain speed. Perfect for curbing a crazy P-plate driver.	Shock Sensor   Get an instant notification as soon as your vehicle has been in a crash. Read about my friend and a crash with a kangaroo here.
Live Tracking   Go online to view live tracking of your vehicle as well as past reports, overspeed alerts and many more reports.	Tow Alarm   Receive a text as soon as your car is being towed. this saved my mate Tony a whole bunch of grief and frustration.	Remotely Disable Car   With this more advanced feature you can remotely disable your car, so if anyone has taken it you can immediately shut it off.
Alarm Notification   Receive a text when your car alarm goes off. You don’t always notice your car alarm going off, but you’ll never miss the text.	Low Power Alerts   Receive a text in-case the device accidentally unhooks from the battery, so you’re not left in the wind if your car is towed or stolen.	Logging Out of Range   Your GPS data will be logged to the 4B Memory inside the tracker when the vehicle is out of range or there is no signal.



Specifications

GPS Chip	UBLOX GPS, GNASS Chip
Antenna	LTE Antenna Internal,
	GPS Antenna Internal
GPS Positioning Accuracy	5m-15m (Depending on GPS Signal)
LBS Positioning Accuracy	~200m (Depending on density of base stations)
GPS Frequency	L1, 1575.42MHz C/A code
Network	LTE/FDD, WCDMA,GSM, SMS
Frequency bands	FDD	B1/ B2/ B3/ B4   B5/ B7/ B8/ B28	B1/ B3/ B5/ B7   B8/ B20	B2/ B4/ B12
	WCDMA	B1/ B2/ B5/ B8	B1/ B5/ B8	B2/ B4/ B5
	GSM	B2/ B3/ B5/ B8	B3/ B8
	SMS		Text-data, PDU(optional)
	Transmit Protocol		TCP, UDP
GPRS	Class 12, TCP/IP
LED Indicator	GPS-Blue; GSM-Red
Memory	4MB for application and data storage
Hot/Warm/Cold Start	<3x, <15s, <60s
Built-in Battery	Embedded 3.7V/140mAh battery for emergency alarm when removing main power
Standby	4 Hours
I/O	3 Digital Inputs 2 Digital Outputs 1 Analog Input 1 Microphone Socket 1 Speaker Socket 1- Wire Interface
Optional Accessories	Replay SOS Button Microphone Speaker Temperature Sensor
Work Current	<30 mA
Standby Current	<15 uA
Charger	5VDC/1A
IP Waterproof Level	IP65
Dimensions (mm)	89mm x 37mm x 12mm
Operating Voltage	9-72V DC
Environment Temperature	-20C – 65C
Environment Humidity	20% ~ 80% RH
Net Weight	50g

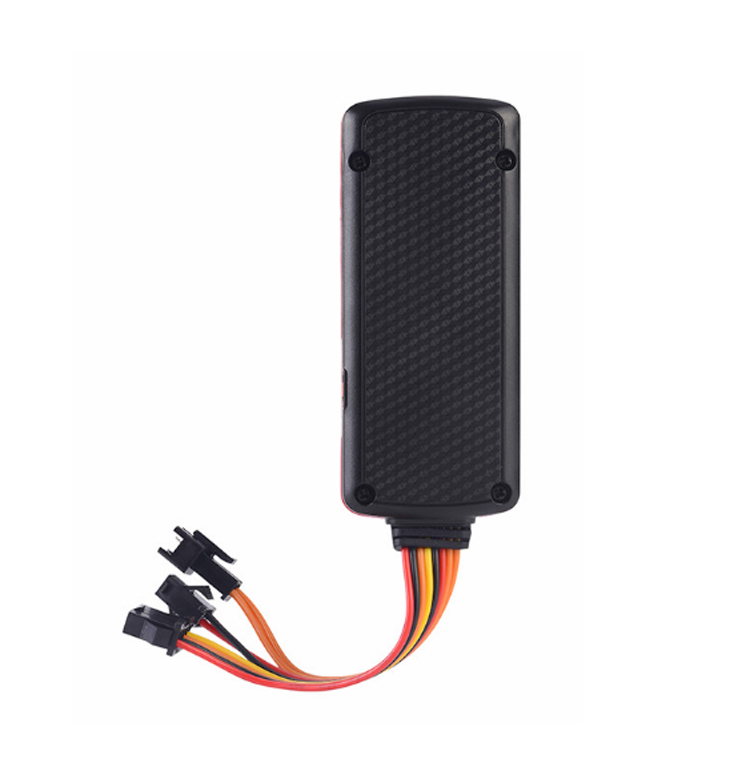

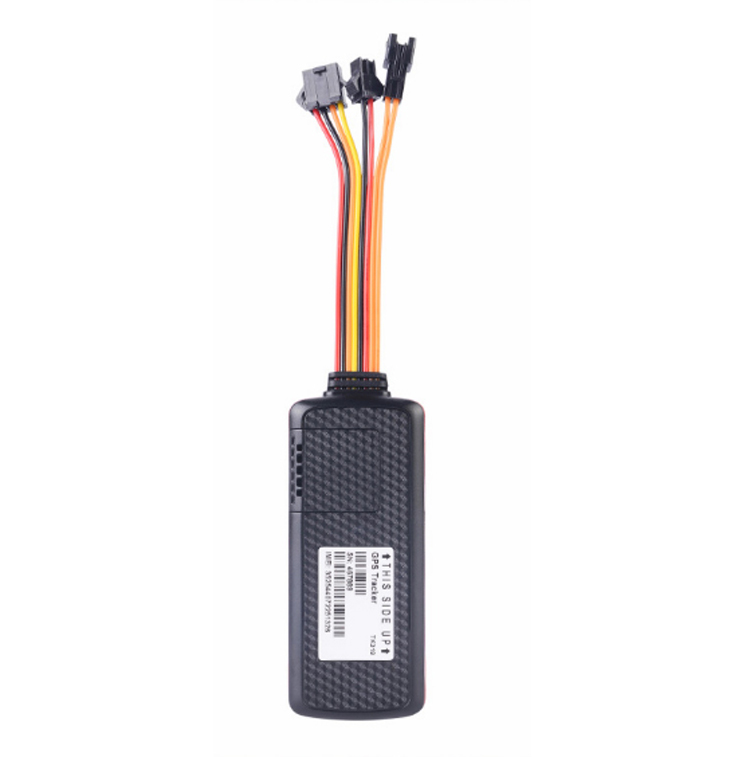

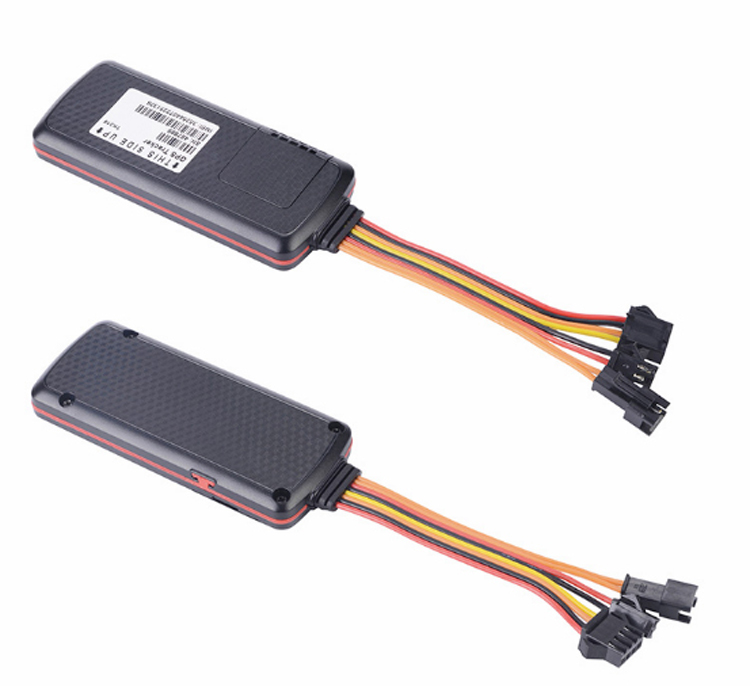

Product pictures:



ADVANTAGES:

SOS/Over-speed/Geo-fence Alert	Temperature Monitoring
Remote Engine/Door Control	Accurate Real Time/LBS Tracking
Wireless Firmware Upgrade(OTA)	Two Way Communication
One Wire ®Protocol Supported	Multiple External Equipment Supported
Built-in 3 axis G-sensor for Motion   Detect	4M Internal Backup Log Saving

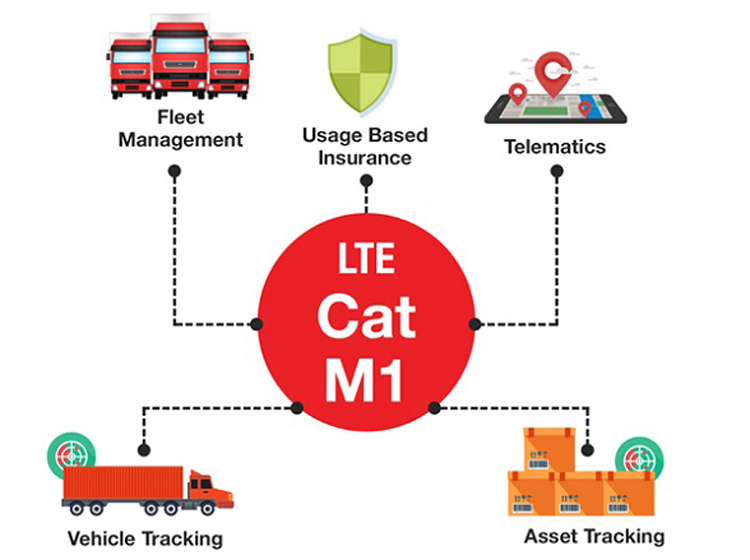

Key applications



Fleet Management	School Buses Fleet, Taxi Fleet, Dispatching Fleet, Car Renting Fleet, Logistic Fleet, Public Affair Fleets, Ambulance Fleet, Mortgate Vehicle Management, Dangerous Cargo Monitoring, Auto Station Solution, etc.
Insurance Telematics	Stolen Vehicle Tracking and Recovery
M2M Application	Cold Chain, Food Chain, Restaurant Supply, Enterprises Equipment Management, etc







Certifications:

• PTCRB
• GCF
• FCC
• IC
• R&TTE
• RCM
• CCC
• Giteki
• Anatel
• AT&T
• Rogers (all planned)
